Title
Horizontal High Speed Servo Flow Wrapper Model : HP-350-4V / HP-450-4V / HP-600-4V
Attachment
APPLICATIONS :

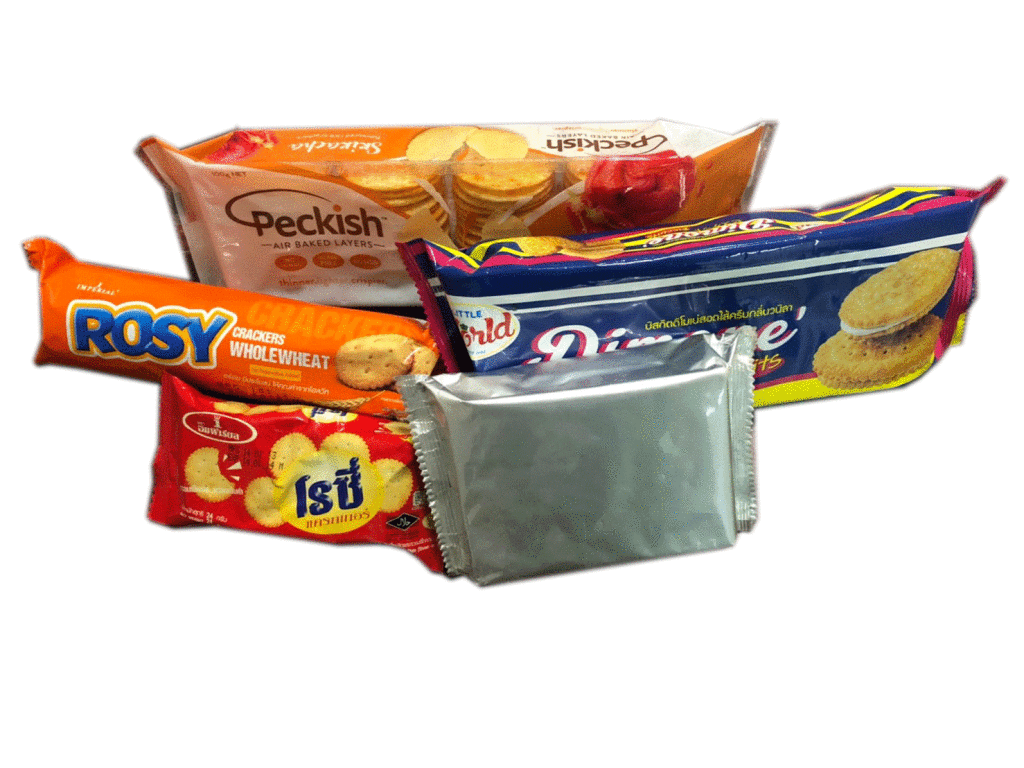

- Food industry such as Pet food, Bread, Bread sticks
- Rolls, Buns, Cakes, Moon cake, Instant noodles
- Solid Pharmaceuticals such as Blisters, Infusion bottles
- Chemical, cosmetics & Personal care
- Printing Industry such as Books, magazines and cards
FEATURES :
- User-friendly human/machine interface control for convenient operations
- Dialogue type screen provides maximum operational convenience and is easy
- Memory function makes the machine ideal for flexible packaging operations
- Self-diagnosis function, error message will shown on screen for easy troubleshooting
- Durable, high productivity and low noise by 4 servomotors driving system
- Auto-splicer option available for higher speed operation and cost saving
- Adjustable forming box make the production flexible
- Servo wrapper equipped with 3 independent servo motors with electronic control
- Overload sensing function for each servo motor prevents the parts and product from being damaged in advance
OPTIONS :
- Auto-feeding system
- Date coder
- Stainless frame
- No product no bag
- Splicer
SPECIFICATIONS :
| Model | HP-350-4V | HP-450-4V | HP-600-4V |
| Operating speed | 20 – 300 pack/ min | 20 – 300 pack/ min | 20 – 250 pack/ min |
| Bag length | 50 – 750 mm. | 50 – 750 mm. | 50 – 750 mm. |
| Max. film width | 350 mm. (300mm.) | 450 mm. (300mm.) | 600 mm. (350mm.) |
| Max. Product width | 20 – 120 mm. (50 – 150 mm.) | 20 – 120 mm. (50 – 150 mm.) | 80 – 230 mm. (110 – 270 mm.) |
| Max. Product height | Max. 60 mm. (90 mm.) | Max. 60 mm. (90 mm.) | Max. 60 mm. (110 mm.) |
| Main drive motor | 1000W. AC servomotor*4 pcs. | 1000W. AC servomotor*4 pcs. | 1000W. AC servomotor*4 pcs. |
| Heater | 1600 W for center sealer 1200W for end sealer | 1600 W for center sealer 1200W for end sealer | 1600 W for center sealer 1200W for end sealer |
