เครื่องบรรจุกล่องอัตโนมัติ
Attachment
เครื่องบรรจุกล่องอัตโนมัติ
เครื่องพันพาเลท โดย Goodtime Pack

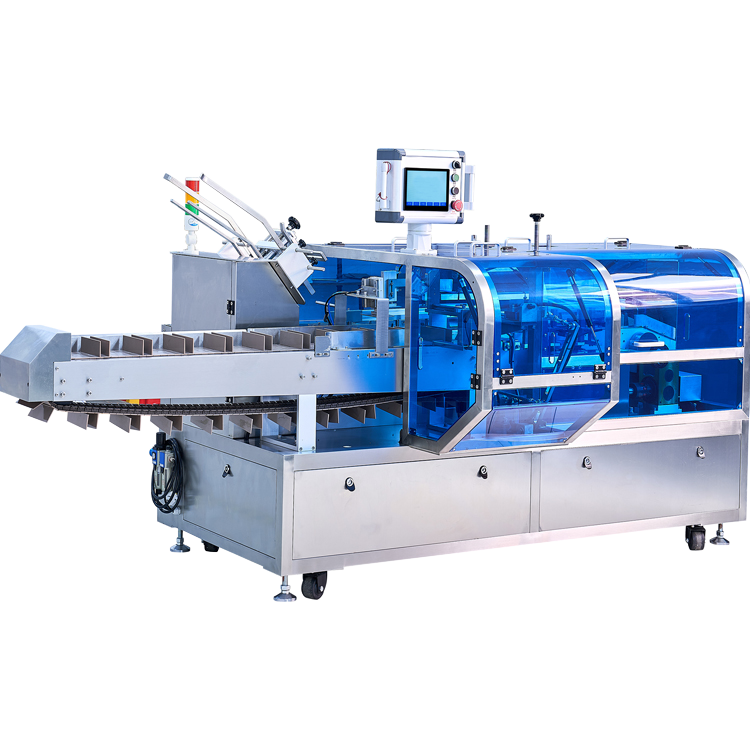

เครื่องบรรจุกล่องอัตโนมัติ
Model : HDL-100/HDL- 220/HDL-320
- Packaging equipmet integrating box opening, box folding and box sealing
- bright apppearance, more reasonable structure and more advanced techology,
- lmported PLC full computer control system, man-machine interface digital display box loading speed, quantity, etc., program control,Easy to poerate, intuitive and efficient.
- lmported photoelectric sensor, accurate positiong, excellent performance and beautiful packaging.
- A variety of automatic alarm protection functions to minimize loss.
- Optional equipment: automatic feeding line, automatic loading, automatic instruction release, printing, waste removal, glue spraying and box saeling.
- Can be used in conjunction with a variety of equipment: material sorting line, manipulator, three- dimensional packaging machine, vertical packaging machine, horizontal packaging machine, filling machine, labeling machine, inkjet printer and other equipment.
SPECIFICATIONS
| Model | HDL-100 | HDL-220 | HDL-320 |
| Carton length | 80~ 180mm | 130-230mm | 150—330mm |
| Carton width | 15~ 92mm | 50~ 200mm | 80—200mm |
| Carton height | 20~ 60mm | 40~ 90mm | 40—110mm |
| Paper requirements | 250-400 | 250-400 | 250-400 |
| Packaging rate | 15-100bag/min | 15-60bag/min | 15-50bag/min |
| Use air supply | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa |
| Ari consumption | 15-60L/min | 15-60L/min | 15-60L/min |
| Power | 220V 50Hz 0.75 KW | 220V 50Hz 0.75 KW | 220V 50Hz 0.75 KW |
| Machine size | 2430(L) x1370(W) x1550(H) | 3276(L) x1420(W) x1580(H) | 3350(L) x1530(W)x1580(H) |
| Machine weight | About800kg | About1000kg | About1200kg |
